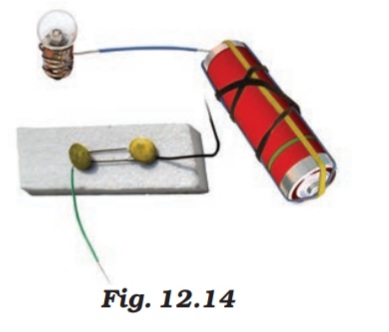

Q.4 Complete the drawing shown in Fig 12.14 to indicate where the free ends of the two wires should be joined to make the bulb glow.


Answer :

To complete the given circuit, the free terminal of the cell should be connected to one end of the switch and the base terminal of the bulb should be connected to the other end of the switch as shown in the following figure.
